Reporting on Metadata Usage Analytics

These files may be analyzed by the customer BI tool of choice (such as Microsoft PowerBI or Tableau).

An example is provided in $MM_HOME/conf/Template/analytics/demo/demo.pbix for PowerBI.

If the installation folder is not C:/MetaIntegration, you may update the RootAnalyticsFolder parameter in the PowerBI example from inside the PowerBI tool.

Example

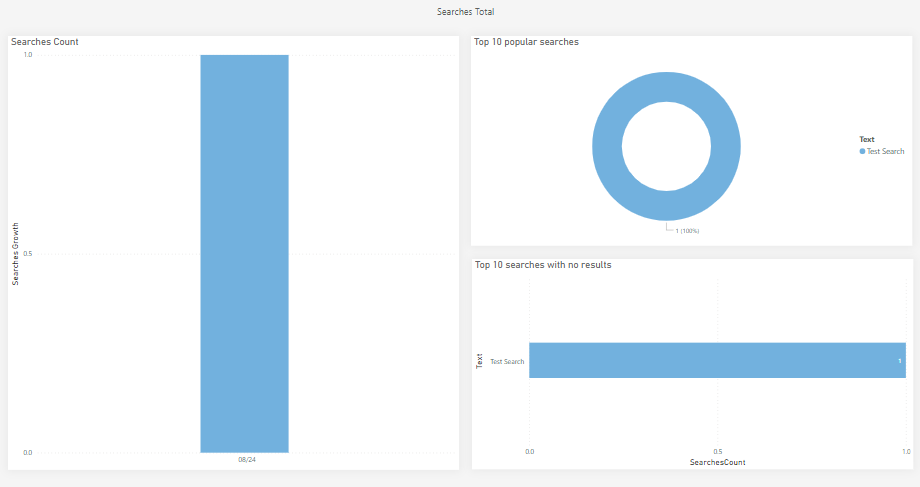

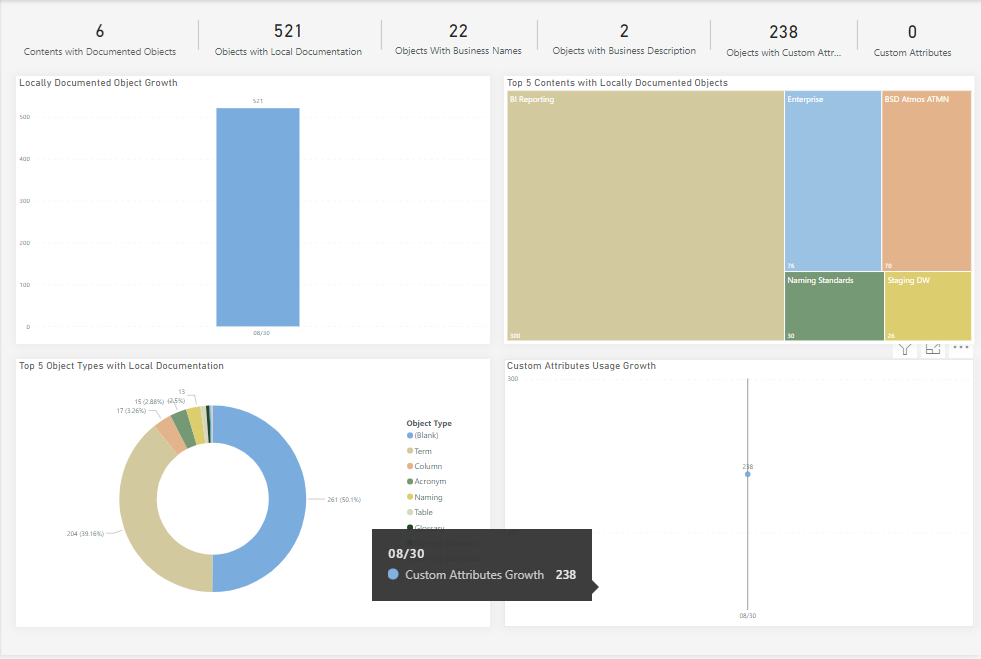

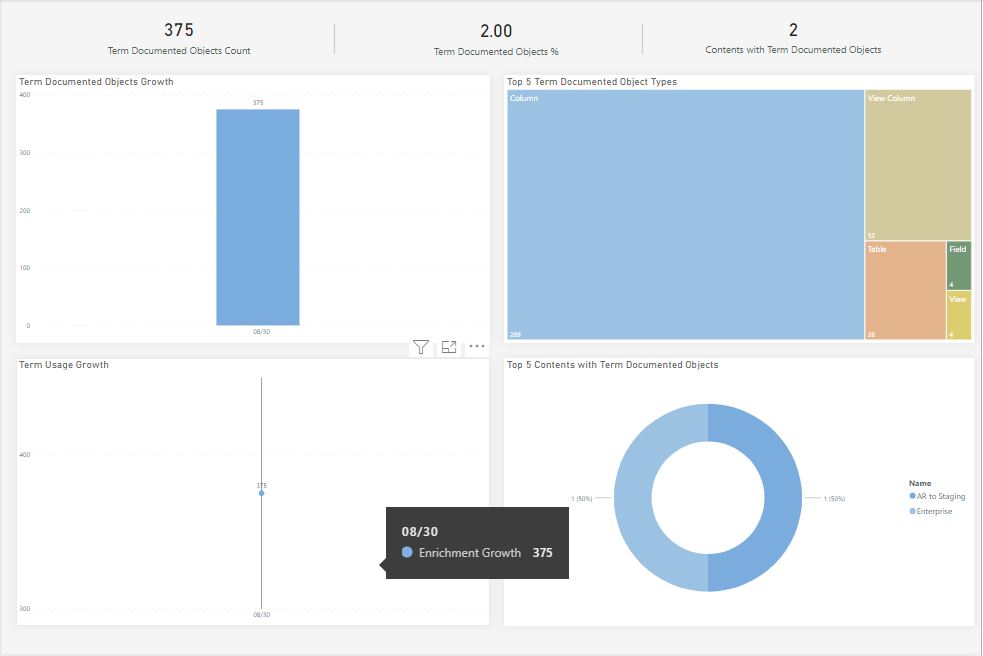

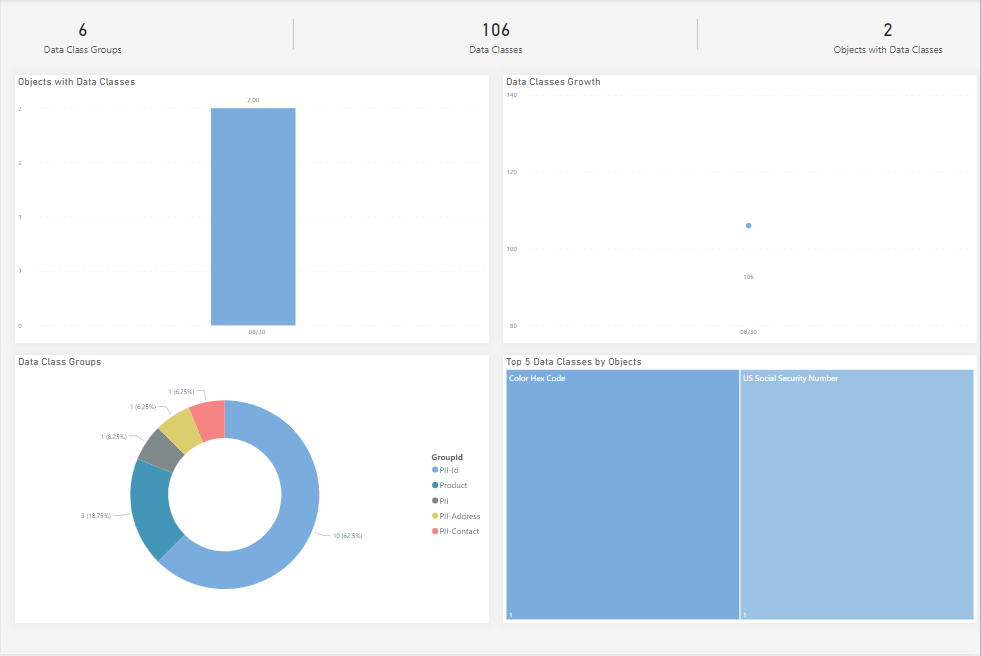

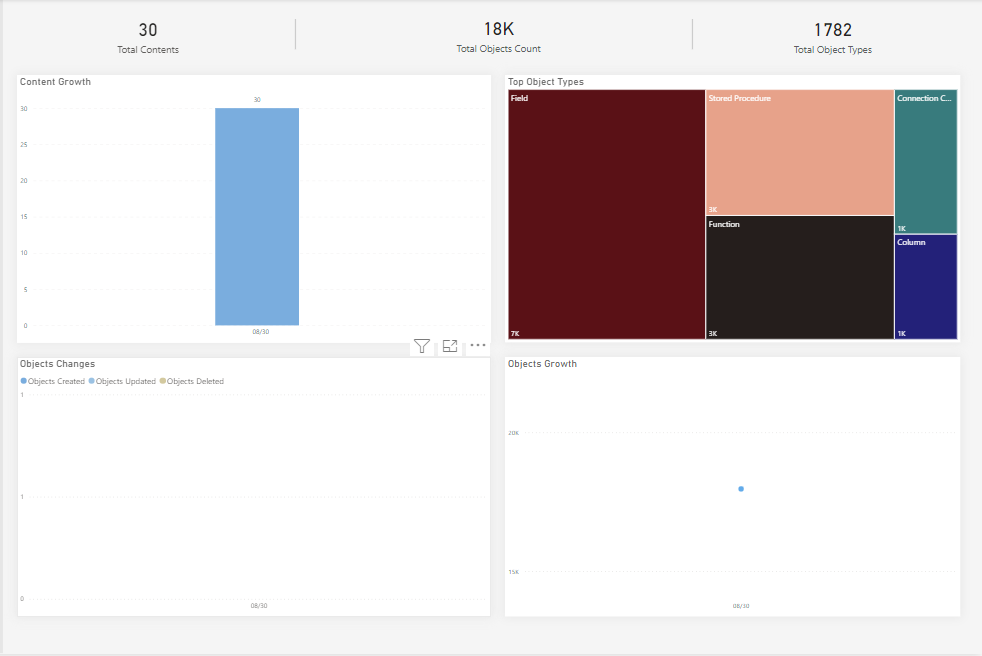

With a Microsoft PowerBI client installed on the application server, open the .PBIX file and PowerBI will be started up with the pre-defined analytics reports already available.

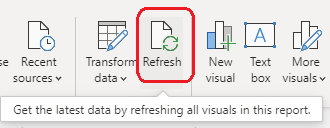

Always use the Home > Refresh option in PowerBI after you perform Export analytics.

However, if the application server installation folder is not matching the default, when you open PowerBI, you may update the path parameter and the data will be located.

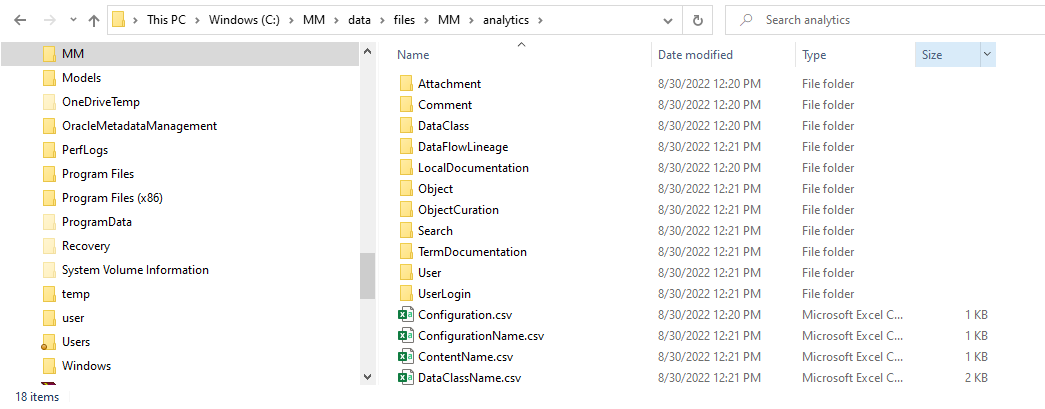

In this case, the installation folder is C:/MM/ and thus the data is at C:/MM/data/files/MM/analytics.

With a Microsoft PowerBI client installed on the application server, open the .PBIX file and PowerBI will be started up but will not know the proper location for the analytics data.

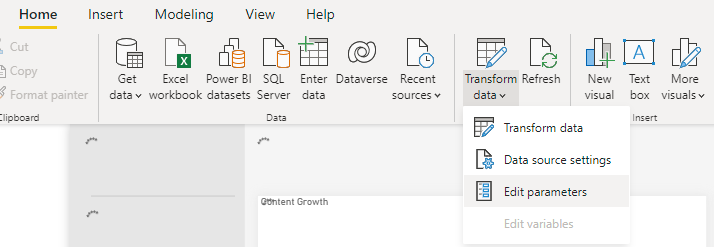

Go to Home > Transforms > Edit parameters

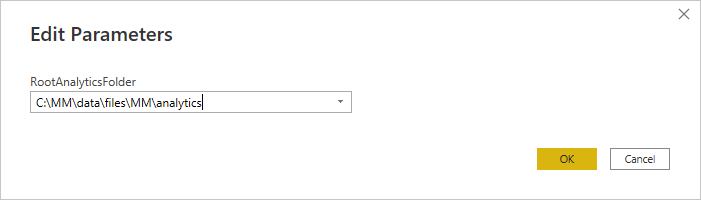

Then update the RootAnalyticsFolder parameter:

Analytics CSV Format

• Configuration.csv (Table associating configurations with models, all by unique ID)

• ConfigurationId unique ID of a configurations with models

• ConfigurationId unique ID of an object in the configuration

• ConfigurationName.csv (Table associating configurations with names by unique ID)

• ConfigurationId unique ID of a configurations w

• Name Name of the configuration

• ContentName.csv (Table associating model objects with names by unique ID)

• ContentId unique ID of a model object

• Name Name of the model object

• DataClassName.csv (Table associating data classes with names by unique ID)

• DataClassID unique ID of a data class

• Name Name of the data class

• ObjectSnapshot.csv (Table associating data classes with names by unique ID)

• ContentID unique ID of the model object

• ModelId Internal unique ID of the containing model

• ObjectTypeId unique ID of the object type for this object

• ObjectCount

• CreatedObjectCount

• UpdatedObjectCount

• DeletedObjectCount

• ObjectTypeName.csv (Table associating data classes with names by unique ID)

• ObjectTypeId unique ID of an object type

• Name Name of the Object type

• DataClassName.csv (Table associating data classes with names by unique ID)

• UserId unique ID of a user

• Name Name of the user

The following folders are partitioned by month at the folder level and then daily at the file level

• Attachment (folder with analytics information about file attachments)

• yyyymmdd.csv Table aggregating for that day

• ContentId Model object ID which has attachment

• ObjectCount

• AttachmentCount Changed number of attachments

• Comment (folder with analytics information about comments)

• yyyymmdd.csv Table aggregating for that day

• CommentTIme Timestamp for the comment

• UserId User ID

• ContentId Model Object ID

• ObjectTypeId Type ID for the object

• ObjectId Object ID the comment is applied to

• DataClass (folder with analytics information about data classes)

• yyyymmdd.csv Table aggregating for that day

• DataClassId Unique ID for theDataClass

• GroupId Group ID

• ContentId Model Object ID

• ObjectCount Change in count of objects

• DataFlowLineage (folder with analytics information about data flow lineage traces)

• yyyymmdd.csv Table aggregating for that day

• ContentId Model Object ID

• ObjectCount Change in count of objects

• DetailLinkCount Change in count of detail links

• ControlLinkCount Change in count of ControlLinks

• ConnectionCount Change in count of Connections.

• LocalDocumentation (folder with analytics information about local documentation)

• yyyymmdd.csv Table aggregating for that day

• ContentId Model Object ID

• ObjectTypeId Type ID for the object

• ObjectCount Change in count of objects

• BusinessNameCount Change in count of business names of objects

• DescriptionCount Change in count of business definitions

• CustomAttributeCount Change in count of attached custom attributes.

• CustomAttributeFieldCount Change in count of attached custom attributes [(why different?)]{.mark}

• Object (folder with analytics information about objects)

• yyyymmdd.csv Table aggregating for that day

• ContentId Model Object ID

• ObjectTypeId Type ID for the object

• ObjectCount Change in count of objects

• CreatedObjectCount Count of newly created objects

• UpdatedObjectCount Count of updated/changed objects

• DeletedObjectCount Count of deleted objects.

• ObjectCuration (folder with analytics information about objects curation

• yyyymmdd.csv Table aggregating for that day

• ContentId Model Object ID

• CertificationCount Change in count of certified objects

• EndorsementCount Change in count of endorsed objects

• WarningCount Change in count of warned objects

• Search (folder with analytics information about searches performed

• yyyymmdd.csv Table aggregating for that day

• SearchTIme Timestamp for search action

• Text Search text used

• SearchResult ???

• TermDocumentation (folder with analytics information about documentation changes to glossary terms)

• yyyymmdd.csv Table aggregating for that day

• EnrichmentType Type of update

• ContentId Model Object ID

• ObjectTypeId Type ID for the object

• ObjectCount Count of changed objects

• User (folder with analytics information about documentation changes to glossary terms)

• yyyymmdd.csv Table aggregating for that day

• TotalCounts Total number of users

• NativeCounts Total number of native users

• NamedCounts Total number of named users

• LockedCounts Total number of locked users

• UserLogin (folder with analytics information about documentation changes to glossary terms)

• yyyymmdd.csv Table aggregating for that day

• UserId Unique ID for a user

• GroupId ???

• LoginDate ???Not sure why this is here in a date named file

• LoginResult TRUE/FALSE, successful or not

• SessionDuration In minutes
